DEQ-230 | Digitálny parametrický / grafický stereofónny ekvalizér s 2 x 30 pásmami

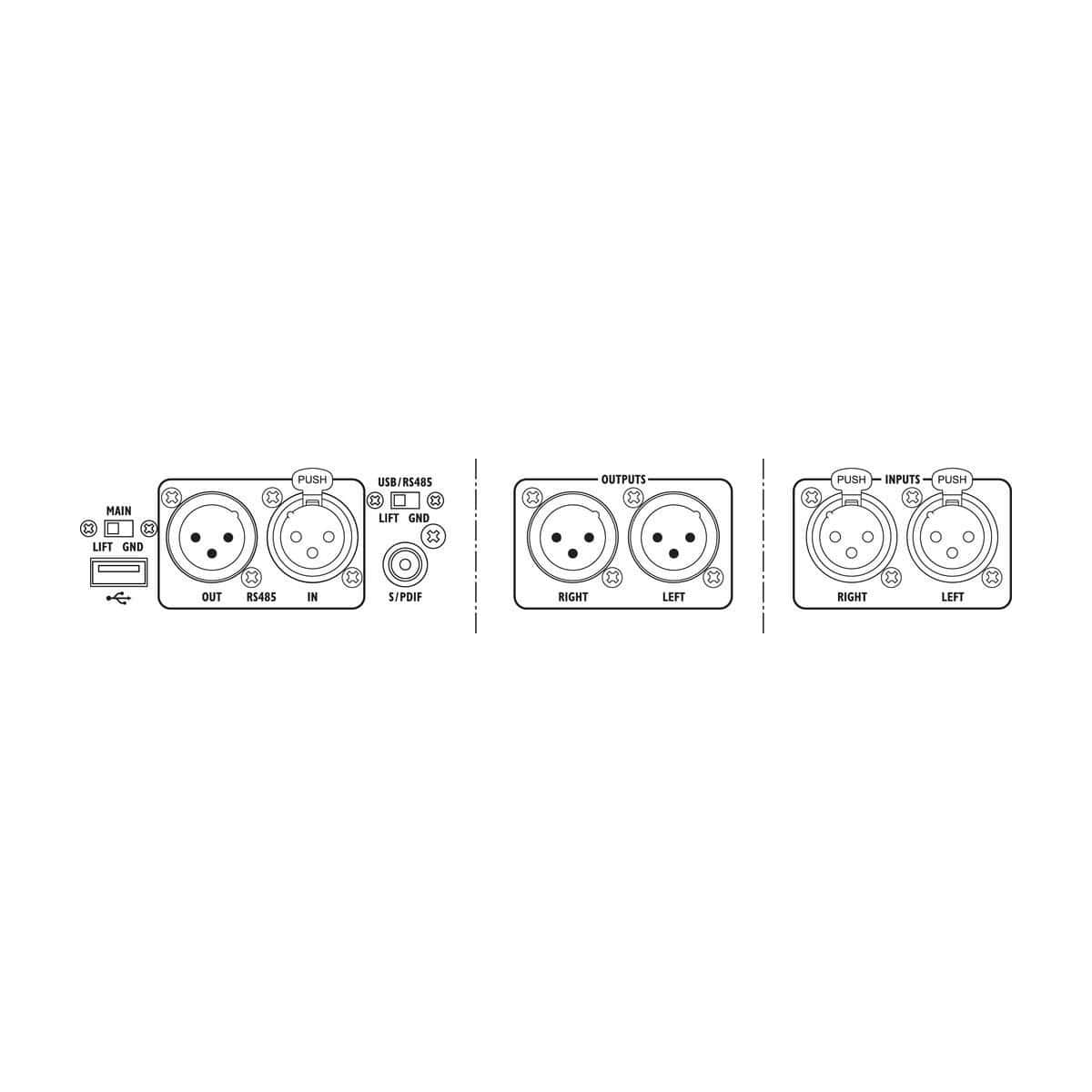

• 2 vstupy a 2 výstupy (XLR, sym.)
• S/PDIF digitálny vstup, stereo
• Dynamický rozsah: > 110 dB
• Užívateľsky definované smerovanie vstupov na výstupy

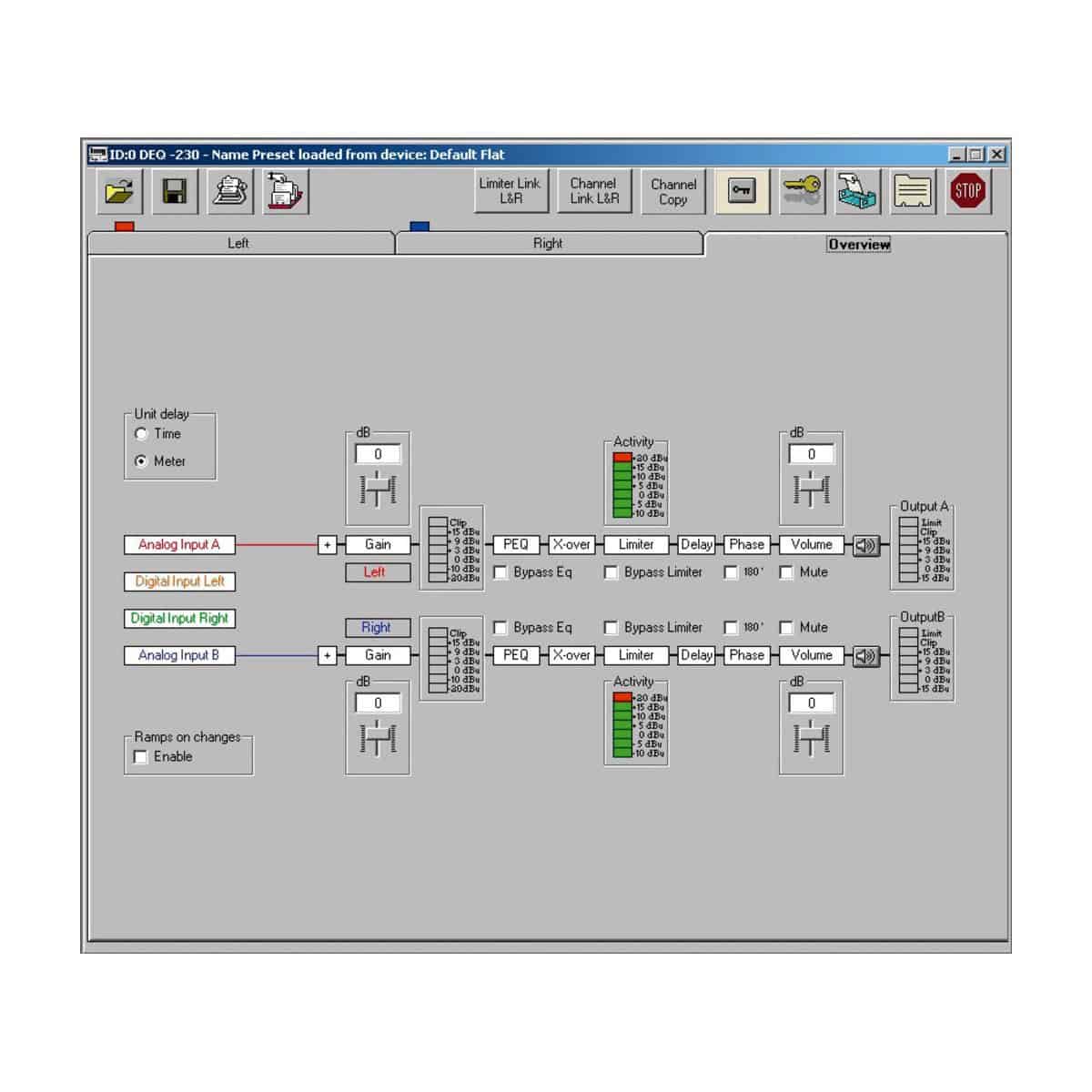

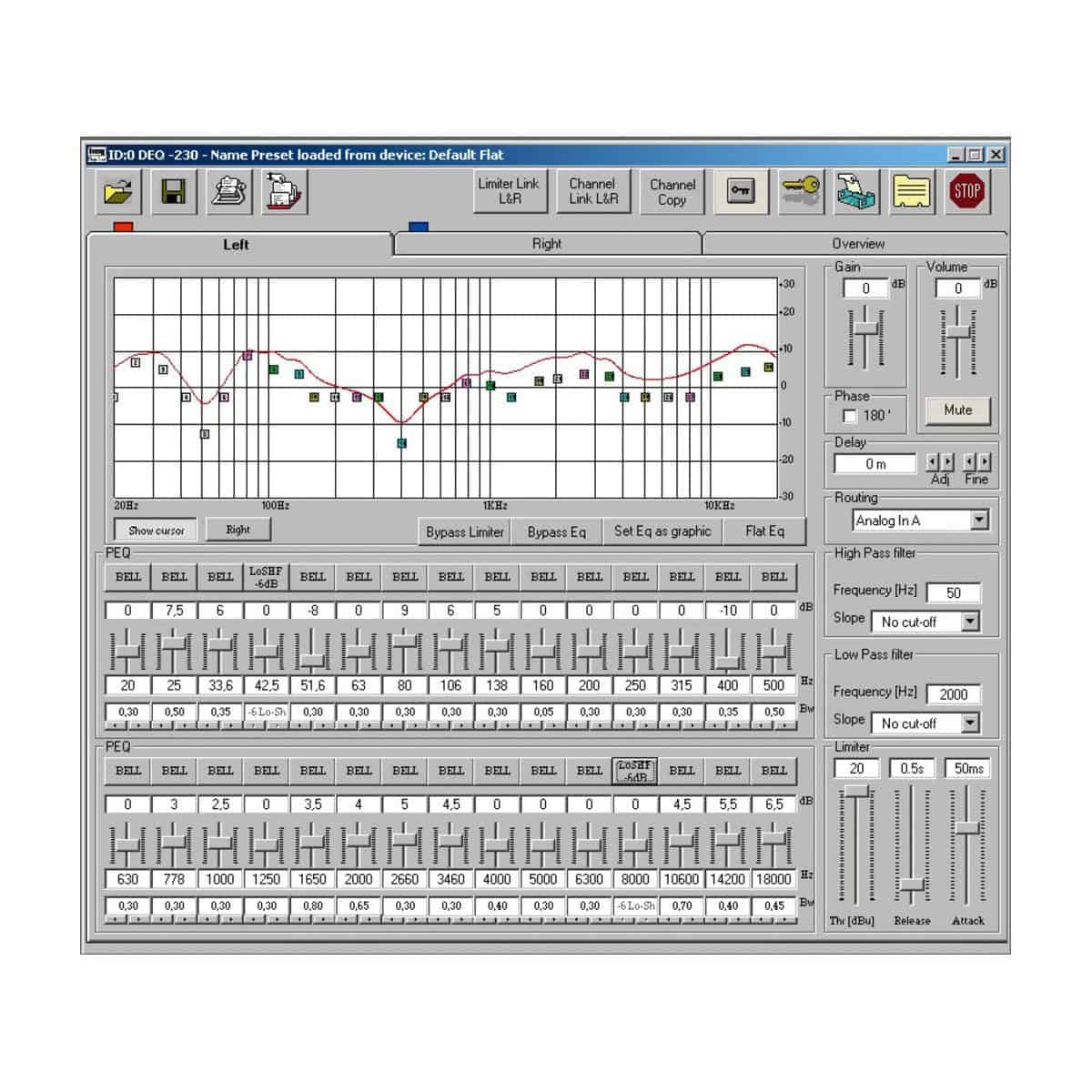

• Grafické užívateľské rozhranie, počítačový editačný softvér
• 24 užívateľských prednastavení
• Diaľkové ovládanie cez USB, RS-485. S voliteľným prevodníkom USB / RS-485 DA-70157 je možné pripojiť sériové rozhranie RS-485 k počítaču alebo notebooku s rozhraním USB a adresovať a konfigurovať niekoľko navzájom prepojených zariadení.
• Bodový matrix displej s 2 x 20 znakmi
• VU meter so 7 LED pre každý kanál, pre zobrazenie úrovne alebo limitéra
• 482 mm (19″) inštaláciu do racku, 1 RS

• Gain control

• 30 ekvalizérov v každom výstupe s filtrom: high-shelf, low-shelf, bell
• kroky 1/24 oktáva
• Gain filter: ± 15 dB každý
• Variabilný Q faktor filtrov: 0.05 do 3 v 0.05 krokoch
• RMS limiter, threshold: 20 dBu to -10 dBu, release time: 0.01-3 s, attack time: 5-200 ms
• Oneskorenie prepínaniamedzi časom (ms) a vzdialenosťou (m): 849 ms max. v krokoch 22 µsec alebo 288 m max v krokoch 6.8 mm
• Filter horného a dolného priepustu do 24 dB/oct. podľa Butterworth, Linkwitz-Riley or Bessel
• Voliteľná fáza (180°)
• Gain control

tools4music 6/2013

“Precision tool. The DEQ-230 from IMG Stage Line is a high-quality digital equalizer … offers numerous possibilities which go far beyond the application range of an analogue equalizer. It is of a high-quality workmanship and provides top test results. … Recommendable!”

Beat 09/2013

“The DEQ-230 is a universal all-rounder with very good features. Beside the high-performance and variable 30-way equalizer, precise filters, switchable delay and RMS limiter, this little magic box provides excellent features to get the most out of your PA equipment, even in difficult acoustic conditions. Despite its many features, a clearly-arranged and easy-to-use unit could be established and with the presets, it also allows you to have a practical solution on hand quickly. The DEQ-230 is available at a more than fair price and could also be installed into a high-quality rack.”

SOUNDCHECK 03/2013

“The DEQ-230 from IMG Stage Line is a versatile digital equalizer with many additional useful features. It provides a reliable operation! … not the slightest background noise and the unit itself barely heats up, even after hours of operation. Delay and compressor/limiter operate as desired. A special highlight is the very attractive price-performance ratio. The unit does not only provide a wide range of features, it is also of an excellent workmanship. The signal which has been converted to 24 bits/48 kHz for the DSP is of an excellent quality, thus ensuring a great sound.”
+ High-quality workmanship
+ Practical features
+ Fully parametric EQ bands
+ Each parameter to be controlled via software
